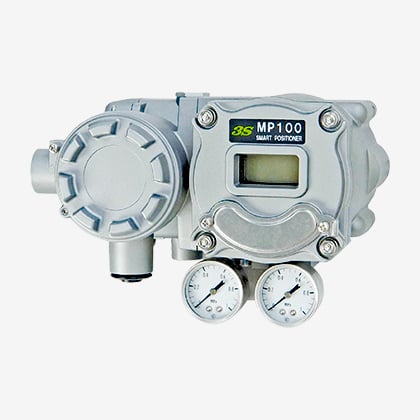

Smart positioner：MP100
- Flameproof
Features
■Easy operation, easy adjustment
Auto-tuning available
Easy adjustment with button operation
■LCD display equipped
Procedure of adjustment or situation of running is visible
No need for handy-communicators
Configuration in the dangerous atomospere is possible
■Excellent design
Well-balanced design based on the experience of conventional positioners
High durability for vibration, solid body and low air consumption
Protection against lightning is equipped by standard
■Flexible configuration
Flow control setting at 17 points.
■Feedback signal function available (option)
■HART communication available (option)
Model
| Line | Definition | 1 | 2 | 3a | 3b | 3c | 4 | 5 | 6 |
| Series | Smart positioner | MP1 | |||||||
| Housing | Standard (Non-explosion proof) | 0 | |||||||
| Explosion proof Ex d llC T6 | 6 | ||||||||
| Connection & acting | Single acting Rc 1/4 (gauge: Rc 1/8) | 1 | |||||||
| Double acting Rc 1/4 (gauge: Rc 1/8) | 2 | ||||||||
| Single acting 1/4 NPT (gauge: 1/8 NPT) | 3 | ||||||||
| Double acting 1/4 NPT (gauge: 1/8 NPT) | 4 | ||||||||
| Electric connection | G1/2 | 1 | |||||||
| 1/2 NPT | 2 | ||||||||
| M20 × 1.5 | 3 | ||||||||
| Option | N/A | 1 | |||||||
| Signal transmitter + HART | 4 | ||||||||
| Ambient temp. | Non-explosion proof: -20～80℃ Ex d llC T6: -20～60℃ (expected) |
S | |||||||
| Actuator | Linear motion | L | |||||||
| Rotary motion | R | ||||||||
| Outlet press. gauge | 0.2 MPa | M2 | |||||||
| 0.4 MPa | M4 | ||||||||
| 1.0 MPa | M0 | ||||||||
| 200 kPa | K2 | ||||||||
| 400 kPa | K4 | ||||||||
| 100 kPa | K0 | ||||||||
| 30 psi * | P2 | ||||||||
| 60 psi * | P4 | ||||||||
| 150 psi * | P0 | ||||||||
| 2 bar | B2 | ||||||||
| 4 bar | B4 | ||||||||
| 10 bar | B0 |
* No domestic sales in japan due to Non-SI unit.
Specification
| Item | Specification |
| Input signal / Input resistance | 4 to 20 mA (minimum range: 4 mA) / equivalent to 525 Ω at 20 mA（Voltage across terminals 10.5 V DC Typ） |
| Supply air pressure | 0.14 to 0.50 MPa |
| Stroke / open angle | Linear motion: 10 to 100 mm Rotation angle of feedback lever 45°(40 to 100°) Rotary motion: Rotation angle of feedback lever 90° （40 to 100°） |
| Air connection | Standard: Rc 1/4 （Pressure gauge Rc 1/8） Option: 1/4 NPT （Pressure gauge 1/8 NPT） |
| Power connection | Standard: G 1/2 Option1: 1/2 NPT Option2: M20×1.5 |
| Protection of enclosure | IP66 |
| Type of Protection | “Standard: Non-explosion proof IECEx: Ex d llC T6 Gb TIIS: Ex d llC T6 Other certifications have been applied for. |
| Operating temperature range | “Standard model: －20 ～ 80℃ Explosion-proof model: －20 ～ 60℃ |
| Flow characteristics | Linear, near equal-percentage, quick open, user setting(17 setting points) |
| Manual action | A/M swtch function (Single Acting only) |
| Weight | Approx. 3.8 kg |
| Material | Aluminum Diecasting （Specially anodized） |
Option
| Function | Items | Specification |
| Feedback signal | Output signal range | 4 ～ 20 mA DC (reverse output is available) |
| Input voltage | 24 V DC (12 to 36 V DC) |
|
| Accuracy | ±1.0% F.S to the position cognized internally | |
| Communication function | HART communication | HART7 |
