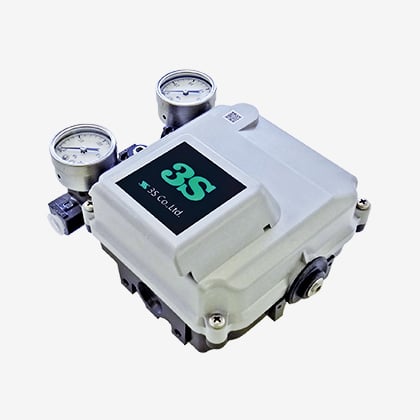

Pneumatic Pneumatic：XP

Features

Cam action and characteristics are selectable


Value action can be switched between direct and reverse by shifting 90[deg] the position of the feedback lever A from A to B.(However the output piping has to be changed.) Also, the structure is such that the characteristics can be changed by selecting the cam. For linear motion, the standard cam can be used to select the characteristics of linear and equal %. Select any of these rotary motion, change the cam to obtain proper equal % characteristics, square-law characteristics, and equal reverse % (optional).

4 phase cam for linear motion

1.Figures above illustrate how the fiducial line on the linear motion cam is related to its bearing position. Figure A shows the direct action and Figure B shows the reverse action.

2.To use the cam for equal %, reassemble the cam so that the cam position mark on it faces 180[deg] opposite. Then slide the lever A setting position by 90[deg] (within the motion range of 45[deg]) in the same way as for linear motion to change between direct and reverse actions.1.Figures above illustrate how the fiducial line on the linear motion cam is related to its bearing position. Figure A shows the direct action and Figure B shows the reverse action.

Cam for rotary motion


The cam for rotary motion(C3L) is normally set to linear. For equal % or other characteristics, replace the cam. Slide the lever A setting position by 180[deg] in the same way as for linear motion to change between direct and reverse actions (within the operating range of 90[deg]).

Model

型式 1 2 3 4   5a 5b   6 7 8 9 10
□□ ○ ○ ○ – □ □○ / □○ □○ □○ □○□ □○○

———————————–

series supplemental
1
model		 2
series		 3
construction		 4
function ＆connection		 5a
*1　Ambient Temp.		 5b
Mounting
    1 100 series 0 standard 1 Rc(PT)1/4 single acting S standard:-20 to 83℃ S1 Linear motion / Side lever type
XP P/P         2 Rc(PT)1/4 double acting S3 Rotary motion / Linkage lever type
            3 NPT 1/4 Single acting B4 Linear motion / Back lever type
            4 NPT 1/4 double acting B7 Concentric rotary motion / Back lever type
            5 Rc(PT)1/4 w/ signal transmitter L -50～60℃
            6 NPT 1/4 w/ signal transmitter H 0～100℃

———————————–

2 phase /Eq%D○○direct lever connection type w/ clump

supplemental
6
*2　pressure gauge (output pressure)		 7
pilot relay / orifice		 8
input signal		 9
cam		 10
lever and clump
M2 0.2Mpa standard     C1a linear motion / 45
4 phase linear / Eq%		 L○○ Linear motion / Side lever type
multi step lever connection type w/ clump
M4 0.4Mpa cleaner orifice dia     C3L Rotary moton / Linkage lever type / 90
2 phase / linear		 l○○ multi step lever connection type w/o clump
M0 1.0Mpa w/o w/     C3E
K2 200kPa F1 Q1 5.0     C3B Rotary motion / Linkage lever
ー/90
2 phase / square-law		 d○○ direct lever connection w/o clump
K4 400kPa F2 Q2 2.0(STD)     C3P Rotary motion / Linkage lever type
ー/90
2 phase / reverse Eq%		 K○○ Rotary motion / Linkage lever type w/ clump
K0 1000kPa F4 Q4 1.0     C4La Linear motion
/45
4 phase / linear		 k○○ Linkage connection w/o clump
P2 *3 30psi F5 Q5 0.7 B1 20～100kPa C7L Concentric rotary motion / Back lever type
/90
2 phase / linear		 H○○ Linear motion / Back lever type L type lever connection w/ clump
P4 *3 60psi F6 Q6 0.45 B2 20～60kPa     h○○ L type lever connection w/o clump
P0 *3 150psi stable B3 60～100kPa     V○○ Concentric rotary motion / Back lever type
Concentric rotary connection / M8 screw connection
B2 2bar G1 J1 5.0
B4 4bar G2 J2 2.0(STD)
B0 10bar G4 J4 1.0
    G5 J5 0.7
    G6 J6 0.45
    fast
    R1 T1 5.0

* Model notation written in blue letters are standard model, others are option.

*1 flameproof model is S type only.
*2 please contact us for psi and bar display.
*3 No domestic sales in japan due to Non-SI unit.

Spec

Specs Single acting double acting
Input signal (pressure) standard: 20 to 100 kPa



(1/2 split range is available with easy adjustment）
supply air pressure 0.14～0.7MPa/140～700kPa
stroke / angle Linear motion : 10～100mm



Rotary motion : 60°～90°
Air connection (pressure gauge connection) Standard: Rc 1/4（pressure gauge Rc 1/8）



Option: NPT 1/4（pressure gauge NPT 1/8）
*1
pressure gauge
（output pressure）		 Stadard: 0～0.2MPa、0～0.4MPa、0～1.0MPa （R）
Option: kPa、psi、bar （R, NPT）
Construcion Non-explosion proof
Cam Standard: Linear characteristics



Option: non-linear characteristics
Ambient Temp. Standard: （S） -20～83℃



Low temp. construction: （L） -50～60℃

High temp. construction: （H） 0～100℃
Weight approx. 1.3kg approx. 1.4kg
Materials Body: Aluminum diecastings (Special Anodize)



Cover: PBT resin（Mixed glass fiber）、Option: Aluminum diecastings (Special Anodize)

*1 please contact us for psi and bar display

characteristics Single acting Double acting
Linearity ±1.0%F.S ±2.0%F.S
hysteresis 1.0%F.S 1.0%F.S
repeatability 0.3%F.S 0.5%F.S
sensitivity 0.2%F.S 0.5%F.S
change of supply pressure 0.2%/0.01MPa 0.3%/0.01MPa
orientation effect (10deg / 90deg) 0.2% / 4.0%
endurance to vibration 1%/1G
air consumption(Nl/min)
(Nl/min)		 5.0/0.14MPa
at 50% output pressure		 10/0.4MPa
at 75% output pressure
Max Cv (Nl/min)
(Nl/min)		 160/0.14MPa 370/0.4MPa
on condition that Output is open to air (orifce dia 5mm)

———————————–

Pilot Relay Max Cv.
(Nl/min)		 Air Consumption
(Nl/min)
single acting
(0.14MPa)		 double acting
(0.4MPa)
XE XP XE XP
Standard 160 370 5.0 5.0 10 10
Stable 160 370 7.0 8.0 14 16
Fast 180 450 7.0 8.0 14 16

Specifications above is effected by actuator spec.

pneumatic instrument / precautions

　　　　  * clean dry air (dew point – 30℃ or below) is required.

* air filter (mesh 5μm or less) is required.
