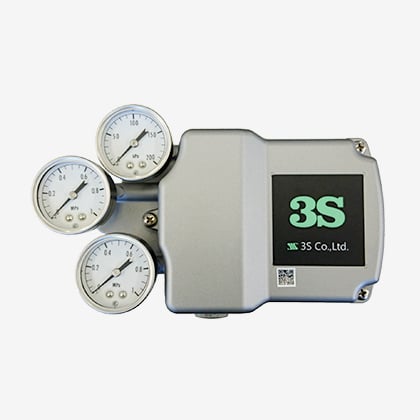

P/P positioner:CP

Features

◆Compact and lightweight
◆Linear motion and Rotary motion available
◆Split range available
◆Easy calibration
◆AUTO / MANUAL function

Spec

Specs Standard Option
Input signal 20~100kPa
Supply air pressure 0.14~0.7MPa
Stroke / open angle 12~50mm, 40~100mm/60~90°
Air connection Rc1/4
(圧力計Rc1/8)
NPT1/4
(圧力計1/8)
Pressure gauge 0~0.2MPa
0~0.4MPa
0~1.0MPa

Cam Linear characteristics Non-linear characteristics
Ambient temperature -20~70℃ Low temp.(L)-50~60℃
High temp.(H)0~100℃
Material Base: Aluminium Diecasting
Cover: Aluminium Diecasting

Weight Approx. 1.4kgs

Specs performance
Single acting Double acting
Linearity ±2.0%
Hysterisis 1.0%
Repeatability 0.5%
Sensitivity 0.5%
range of supply air puressure 0.3%/0.01MPa
posture torelance 10°/90° 0.2%/4.0%
Resistance against vibration 1%/1G
Air consumption
(Nl/min)
5/0.14MPa 11/0.4MPa
出力圧力50%時
Max Cv
(Nl/min)
60/0.14MPa 140/0.4MPa
出力側空気開放時
Attention for usage of pneumatic instruments
     * Clean and dry air (dew point -30 or below) is required.
     * Air filter 5μm or smaller is required.
All specifications are subject to change without prior notice.
     All figures are effected by the valve/actuators.
