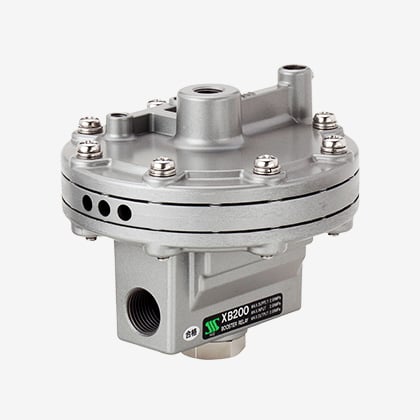

Booster relay：XB200
Features
◆Large Cv suitadle for large valves.◆Secondary pressure partitions the seal plate to detect stable secondary pressure.
◆Built-in bypass valve for adjusting sensitivity
◆ Filter for both supply pressure side and signal pressure.
◆Stainless steel bolts and nuts.
Spec
| Model | ＸＢ２０１ | ＸＢ２０２ | |
| Max.supply pressure | 0.99MPa | ||
| Max.signal pressure | 0.99MPa | ||
| Max Cv. | 2.6 | ||
| Temp. Range | Standard:－30 ～ 80℃ | ||
| Input-Output Ratio | １：１ | ||
| Connection | SUP&OUT: Rc 1/2 SIG: Rc 1/2 |
SUP&OUT: NPT 1/2 SIG: NPT 1/2 |
|
| Net Weight | Approx.1.5 ｋｇ | ||
※Piping of SIG, please use the 6×4 conduit.
